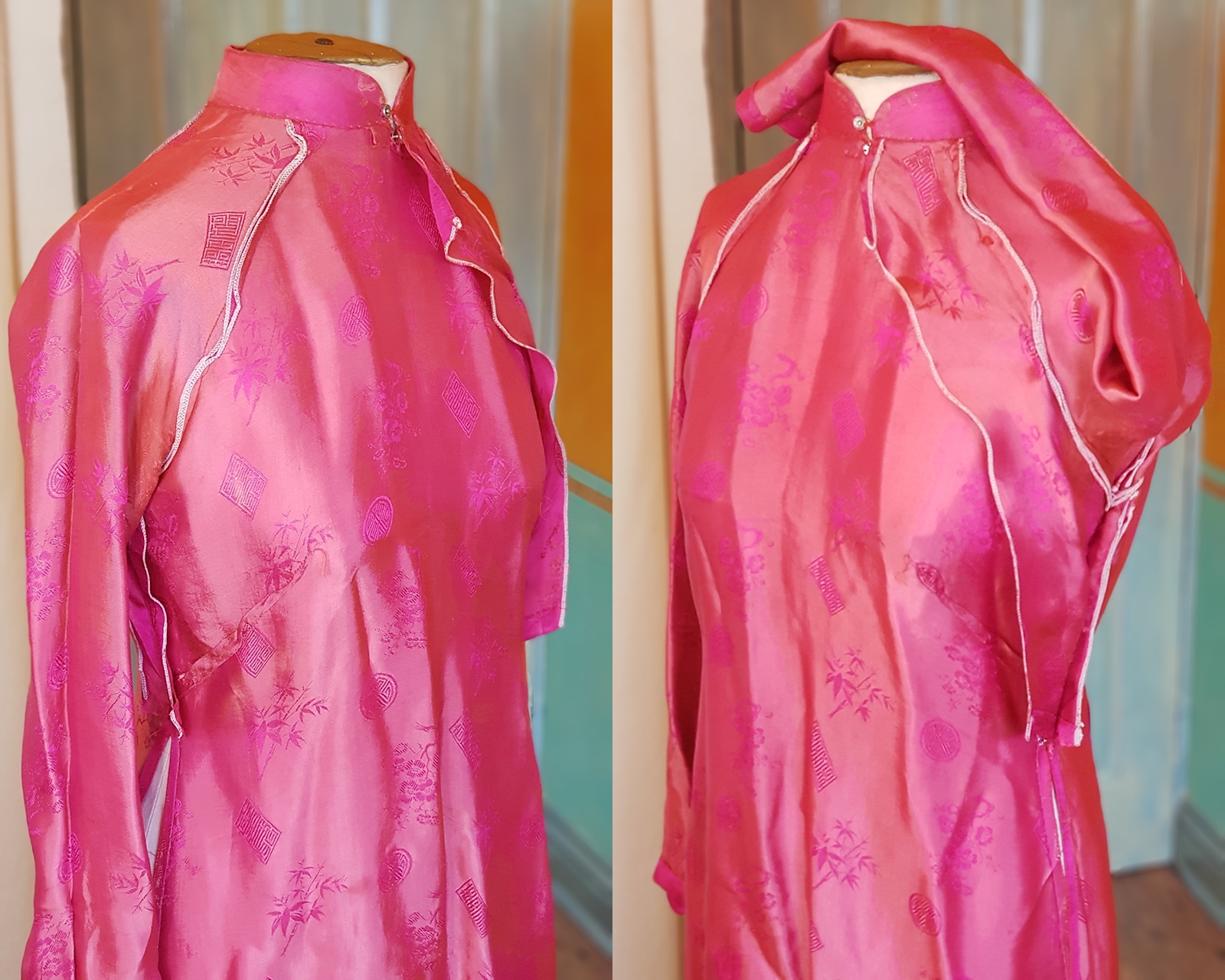

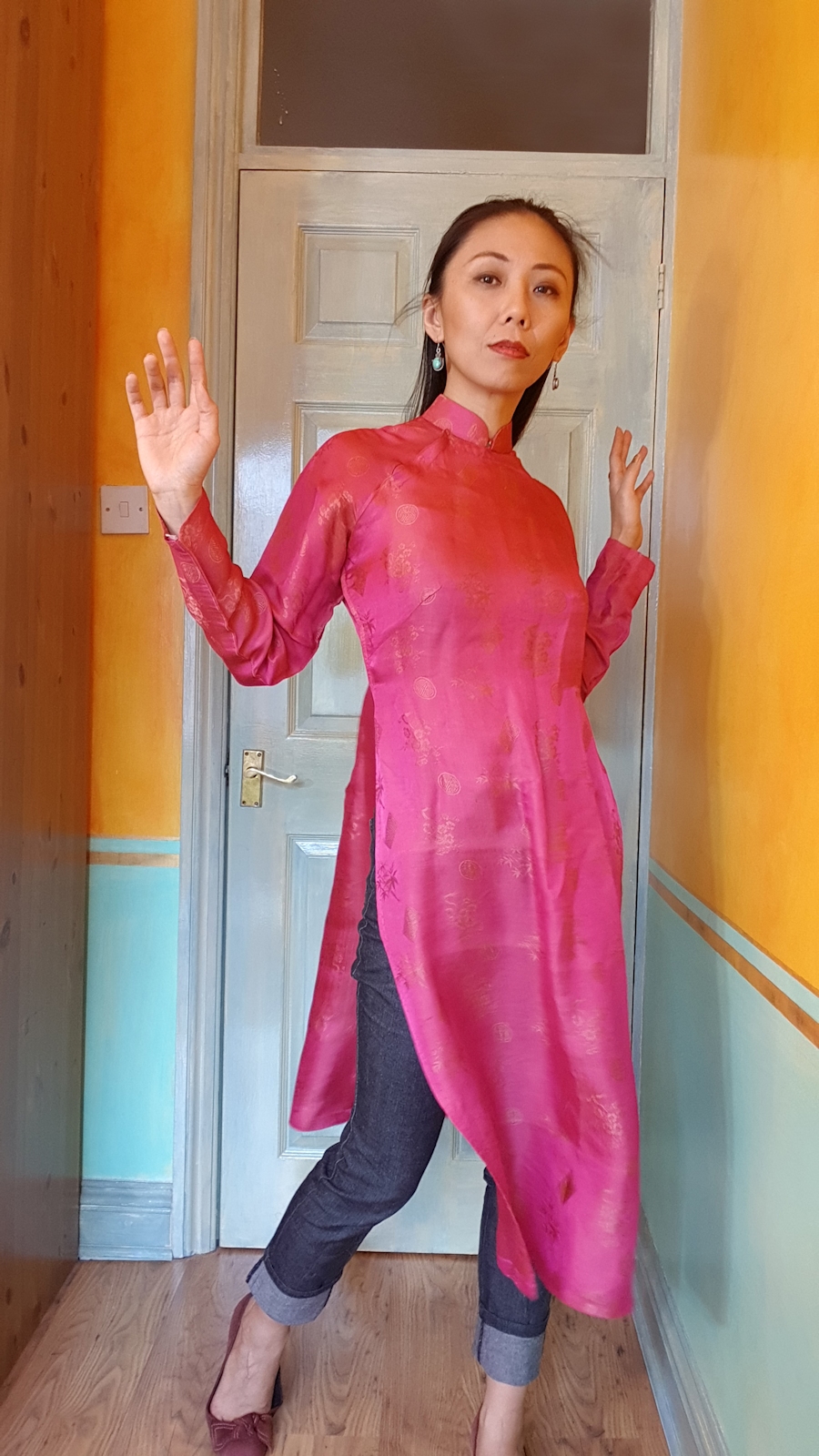

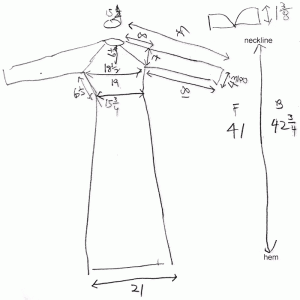

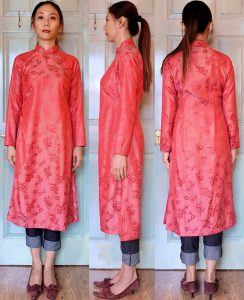

This one is a straight replacement for an authentic Vietnamese Ao Dai robe that a friend gave me when it no longer fitted her.
The original is made of a silk-rayon mix and is absolutely heavenly to the touch. Originally I was a bit disappointed to learn that it wasn’t 100% silk. But then I learnt that rayon is not only more comfortable for hot humid weather, it may also be partly responsible for the superb softness of the Vietnamese jacquard, which none of the other Asian silks have. Sadly it’s impossible to find this variety of jacquard in the Western fabric shops. I would have just kept wearing this original, except the moths loved it as much as I did. And now it’s shredded in places.
The fabric I end up using I got by chance. It doesn’t have the same softness & drape, but is the closest I can get in the West.
And now for a change of pace, let’s finally catch up with a project finished last year, but was waiting for the matching slim trousers which I just finished… This is the Indian anarkali tunic outfit kit I bought last year:
Loose weave Khadi shell fabric – this looks really similar to the raw silk gauze I used for Burda 2014-02-117 top (another one waiting to be blogged)
Poplin / Batiste lining
Originally I was going to leave this quite loose & robey as it vaguely reminds me of dreamy Pre-Rarobes. But Ms Practicality vetoed that idea. And I went back to something more like the original intended design. Ms Practicality also insisted that I make this tunic open front to maximise wearing opportunities. (Though in retrospect, the flared shape doesn’t really lend itself to being worn with front opened.)

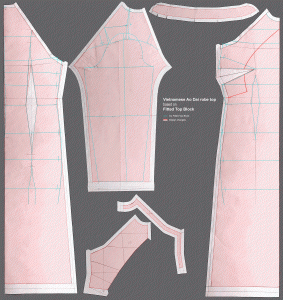

Examining the marketing photo I saw that armhole bust darts were added to give the tunic a fitted silhouette. I followed suit & modified my Fitted Top Block to shift some of the bust shaping into a new armhole bust dart.
The bodice did not quite fit into the panels neatly. To minimize the number of vertical seams, I ended up removed the equivalent of one panel – front outer panel – at the side seam & kept the corresponding back outer panel for the underarm area – ie no proper side seams… kind of like in some tailored jackets.
Additional dart shaping (bust, waist, shoulder blade) were done at the existing panel seams with varied seam allowance widths.
For sleeves I used my more mobile Tunic Sleeve Block.
Hem were shorten for my less than modelesque stature (yielding scraps to squeeze out #2 Peplum Top below).
Ms OCD demanded that I redo the collar, chest appliqué, hem border, and lining “properly” the Western way. So…
Hem border reapplied after everything else was done (saving me a chunk to squeeze out #3 Bustier Top below).
Lining flipped to hide the seam allowance the Western way. (So far I find that the Asian garments seems to favour exposed seam allowances even when the garment is lined. Someone told me it’s to facilitate alteration in case one gains weight. It’s less pretty in side, but certainly quicker to let out or take in. I guess I better not grow sideway any further now that I’ve hidden all the seams!)
Hooks & thread bars were used for front closure to minimize visual disruption to the design whether worn open or closed.
Now can I just moan about hooks a bit? I thought all hooks are equal. Apparently not. I bought a bunch of Hemline hook & eye fasteners that you’d find in all the sewing shops here in the UK. Trusted brand right? Nope. Total fail. They won’t stay closed, because the bump at the base of the hook is too shallow to properly do its job of stopping the thread bar or eye from slipping off. Maybe if the garment has negative ease – eg in a bra band or bustier – then this won’t be a problem as the busting tension would stop the hook & bar/eye from moving about. But given the positive ease in my tunic, it’s wardrobe malfunction waiting to happen. Actually the hooks I recycled from old Victoria Secrets bras for my choli blouses also have the same problem of wanting to come undone. I only properly understood the problem when I examined a couple of custom made choli blouses I ordered from India: These have hooks with prominent bumps & are properly secure once done up. Annoyingly online shops don’t show profile photos of hooks they sell, so it’s impossible to tell which brand has the secure hook design with a proper gate-keeper bump.
1a. Anarkali Tunic scraps ⇒ Peplum Top
I wish I had scraps bigged enough to make Burda 2014-03-118 Square Neck Peasant Top. I didn’t. So I tried draping the scraps on Q to see if there’s even enough to cover Q’s modesty. Thankfully I did. This peplum top design is the result. The front, peplum, & back for each (L/R) half is one continuous piece of the excess length panelled hem from the tunic. The bodice sides & straps are from the tunic’s two excess front outer panels (minus length used for the shirt dress front opening facing).
As the fabric is loose woven & seemingly delicate, I will need to line the top. The lining scraps are not big enough, so a batiste from the Stash will have to be pressed into service.
While the neck opening is big enough to slip over my head, I want the waist to remain trim, so some sort of opening must be incorporated to make it possible to put on/take off the top. Back overlap with buttons perhaps?
Now I just need to figure out the construction… one day some day!
1b. Anarkali Tunic scraps ⇒ Bustier Top
The scrap hem border from the tunic just barely goes around my torso. As the embellishment is so lovely, it seems a shame to throw it away. Taking inspiration from a Dolce & Gabbana editorial & a Alexander McQueen F/W 2008 designs, I think I will turn this into a bustier. To bridge the gap in girth I’m going for a contrasting deconstructed aesthetic of exposed zipper, braided elastic, or hook & eye tape. To maximize wearability, I may add sleeves & peplum – or maybe make this a separate top to be worn under the bustier. I have nothing as fancy as McQueen’s silk tulle, so instead I’m going to use a plentiful cheap gauze from the Stash (formerly window drapes). Haven’t quite work out the pattern yet let alone construction. So yet another project joining the long queue.
Since the fabric is a stiff Jacquard, the usual Asian instructions for a drapier Churidar Trousers won’t work. So as you already know I turned this into a Western style slim trousers, doubling as wearable muslin for my new Slim Pants / Trousers Block to statisfy Ms Two-Bird-One-Stone.
2a. Churidar Trousers scraps ⇒ TBD
There’s enough fabric for something else… Something I haven’t yet decided, but probably a dress or a-line skirt because this stiff fabrc with no give needs plenty of ventilation.
3. Dupatta Shawl ⇒ TBD
This was readymade. But the rose coloured fabric is rather scratchy. So I initially added a dual-tone chiffon lining. But then it doesn’t drape as well anymore. So off the lining comes.
I think I will have to make this into something I may wear more often. I have way too many dupatta shawls for my Western lifestyle!

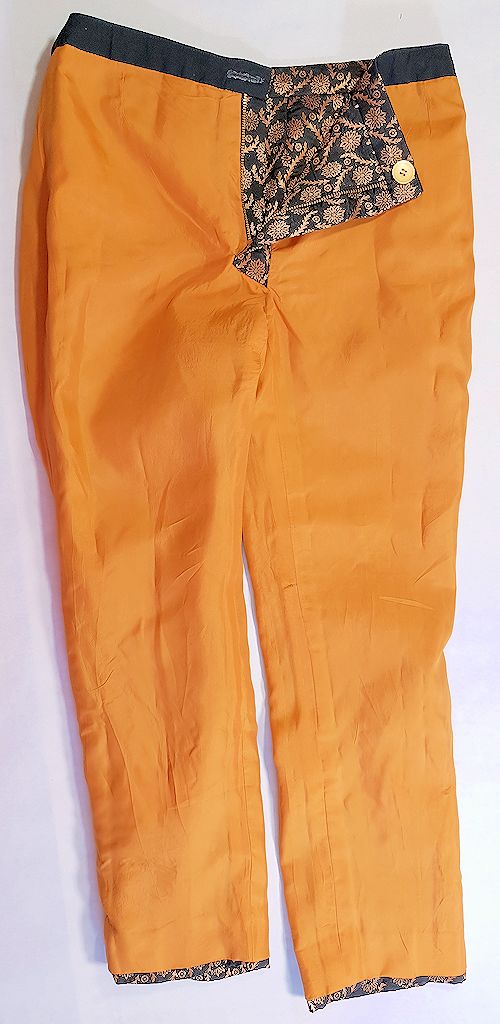

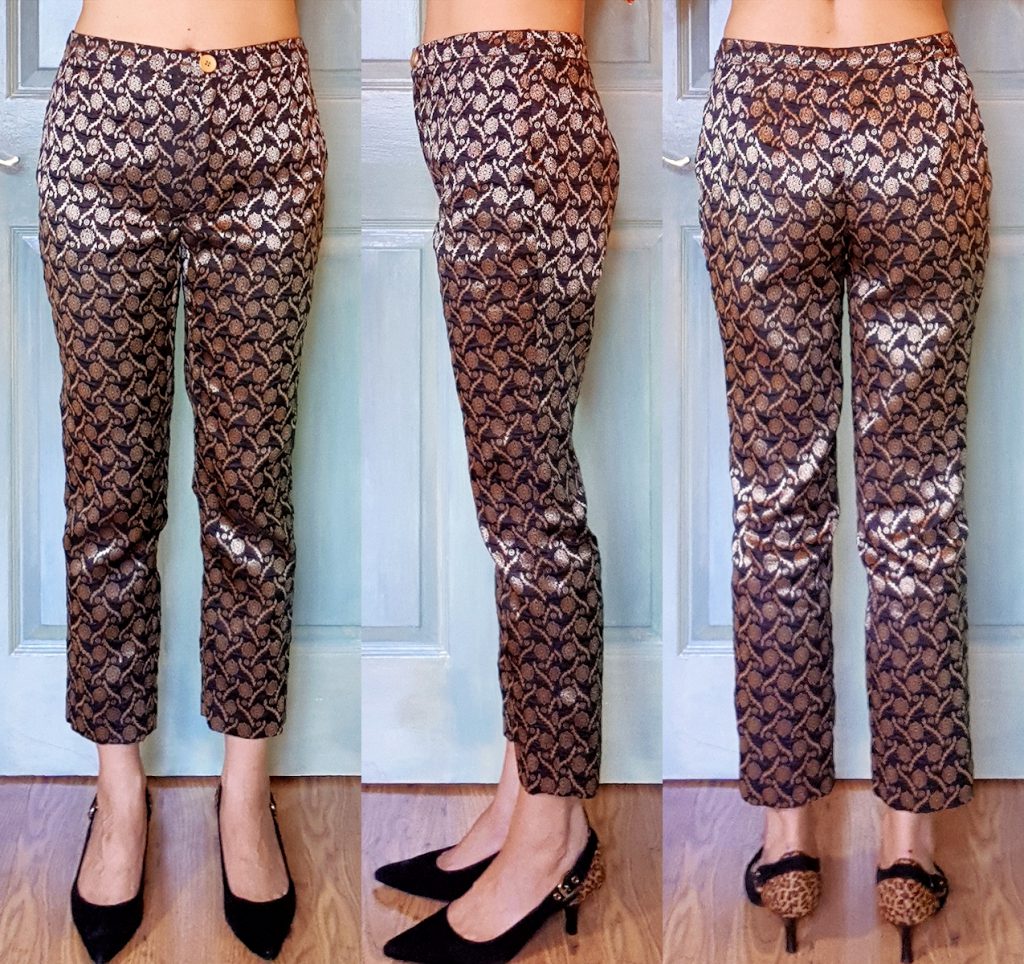

You can’t see much under the tunic in the photo. So apart from a slim silhouette & capri length I had to make up the rest. I decided on fly front with button closure for a more yin-yan look. Would have added pockets and belt loop as well, but the fabric doesn’t have much give and frays badly. So I omitted this to keep the silhoutte slim and avoid tears during construction.

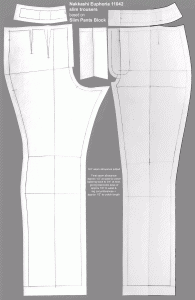

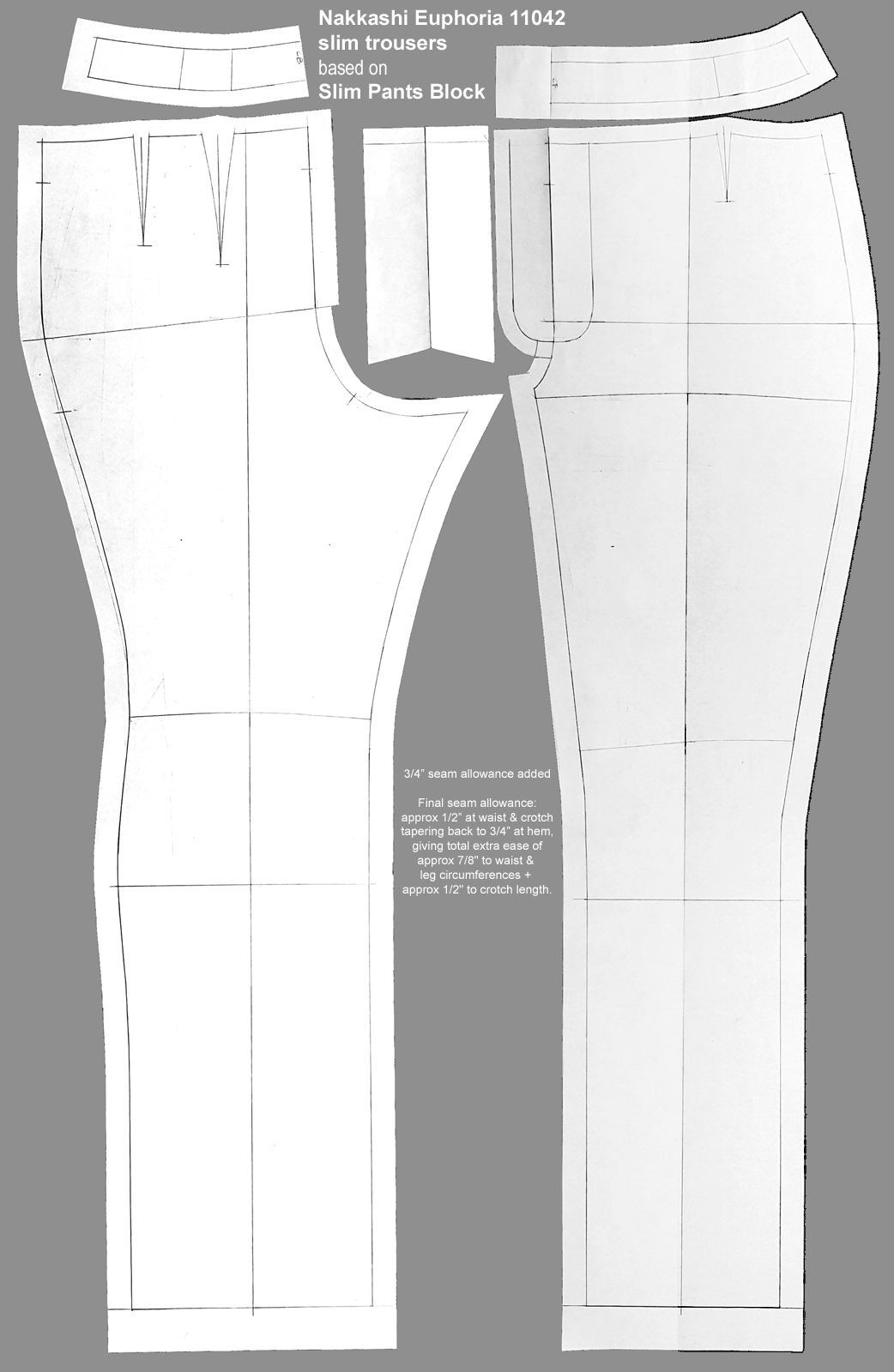

Design: Mid-rise, F side dart, B 2 darts, capri length, Fly front, no pocket.
Fitting: To accommodate lining bulk & my middle age spread, added ease by sewing approx 1/2″ SA instead of the 3/4″ SA added to the pattern for side seams & inseams. This gave me approx 7/8″ extra ease at the waist tapering to no extra ease at the bottom of the legs, almost 1/2″ extra crotch length.
The Jacquard & lining both fray badly, so had to overlock as soon as the pieces were cut.
Stretched bias edges – inseams, leg side seams, back crotch fork – as much as possible, which is not much in this fabric with no give.
Because of the angles of my crotch points, it’s easier to sew the inseams first, then crotch seam. This does mean it’s not possible to fit the inseam as I sew (like suggested by Pants for Real People).
Sewed side seams & inseams with 1/2″ seam allowance instead fo 3/4″ tapering back to 3/4″ at hem.
Not the most comfortable slim trousers thanks to the fabric. I reckon it’s synthetic. There’s also not much give. So despite being almost the same pattern as my Slim Pants Wearable Muslin 5 (apart from waistline), this pair feel more restrictive. Of course I would finish something a bit thicker & not so breathable just in time for a heat wave. I still have a fair bit of the fabric left. I think a skirt or dress with more ventilation may be a happier match.
It started with such good intention…but I didn’t have the stamina – nor time – to test my hypothesis thoroughly. To recap, I thought that to secure low open neckline & increase sleeve mobility, I simply have to:
not have back neckline edge on shoulder blade peak; and
make the shoulder slope more square than my actual shoulder slope.
I was going to test this out in two ways…
1. Authentic choli pattern instruction found online
I used the Sari Blouse pattern instruction from Vani’s Blog. The pattern came out looking a bit large – especially the back (dotted line in the pattern photo above is my KK Top Block with wearing ease already added). This made me nervous about testing it out with one of my pre-embroidered Nakkashi choli fabrics. As I was in a rush to get one of my Nakkashi outfits sewn up for a trip, I didn’t bother making a muslin of this. Checking instructions on a few other blogs, this instruction seems fairly standard. Maybe this is the everyday fit rather than the Bollywood glam fit. And given that the instruction doesn’t call for a low open back, maybe it won’t work so well when you lower the back.
There is one YouTube video I found in English that offers a theory of what changes you need to make to lower the neckline. The narrower shoulder lines you see above is my attempt to apply that theory. But I was still too chicken to test on my pre-embroidered fabric.
2. Body warp with tilt-to-square shoulder alteration
Wrap rationalised – Front
Wrap rationalised – Back
Tilting & squaring the shoulder – Front
Tilting & squaring the shoulder – Back
Final pattern – Front
Final pattern – Back
Sleeve based on Indian instruction
I ended up retreating to my comfort zone of tinkering with my own moulage. This time I did use the body warp instead of the Kenneth King Moulage I drafted a while ago. I was hoping the more precise body wrap would yield a better fit. Well, more isn’t always better. It was a nightmare trying to figure out what to do with my lopsidedness. You can see in first two photos above how my left & right sides differ. I wouldn’t have minded the extra work if the result was better. It wasn’t. Once you add ease back in, much of the minor lopsidedness wasn’t visible anyway. I guess if your lopsidedness was more extreme, then the precision may help. So the conclusion? Either Moulage Drafting or Body Wrap will work. Pick whichever method is easier for you: Moulage Drafting requires lots of measurements & calculations, Body Wrapping may be uncomfortable while you’re being wrapped & you’ll need to decide how much lopsidedness you’ll bother to incorporate into your Blocks. If you go with Body Wrap, you’re probably fine to gloss over minor differences between your left & right sides if you’ll mostly make stuff with wearing ease. Don’t drive yourself crazy like I did!
Now back to my choli pattern & drafting for arms up position, you can see in photos 3 & 4 how I tilted the shoulder seam by adding a wedge radiating from the princess seam / back waist dart to the side seams. This lengthen the side seams, make the shoulder more square and the neckline more U-shaped. The difference in side seam & shoulder seam lengths with arms up vs arms down was about 1.5″ for me. I ended up adding at the side seam about half that difference – because it seems like a sensible compromise & also it makes the necklines conform better to the pre-embroidered necklines. I positioned the pivot points of the tilt / wedge at the base of the necklines where they start angling up because I think this is where the tension will be and body movement will make the neck opening spread out, causing the sleeves to fall off the shoulder.
Hurrah I can raise my arms. Boohoo no luck on stay-put low / open neckline. I ended up having to add the dori back ties to prevent wardrobe malfunction.
So what went wrong?
I now think stay-put low / open neckline is impossible once you add wearing ease to the bodice. What I noticed is that when I move, the ease at the waistline allow the whole bodice & neckline to shift up, and this make the neckline too big for the new higher position. So the sleeves fall off the shoulder.
I checked the House of Blouse top with the stay-put neckline again, and indeed the bodice was quite tight. Too tight for my new spreading middle in fact! As soon as I let out the side seams, et voilà – same off the shoulder problem as my own make!
So there you have it (I think, for now anyway), if you want open neckline to stay on the shoulders, go with stretch Choli Blouse with 0 or even negative ease. If you insist on lovely pre-embroidered woven choli fabric with low open necklines, then stop being stubborn & keep that dori back neck-tie. That’s me told off then! 🙂
I began to wonder if my requirements are even possible. But surely billions of women from the Indian subcontinent over the centuries wouldn’t have put up with immobile sleeves that keep falling off the shoulder & bodice that offers no bust support! Time to go back to the sources & try to discern the underlying principles even if the surface instructions make little sense to me.

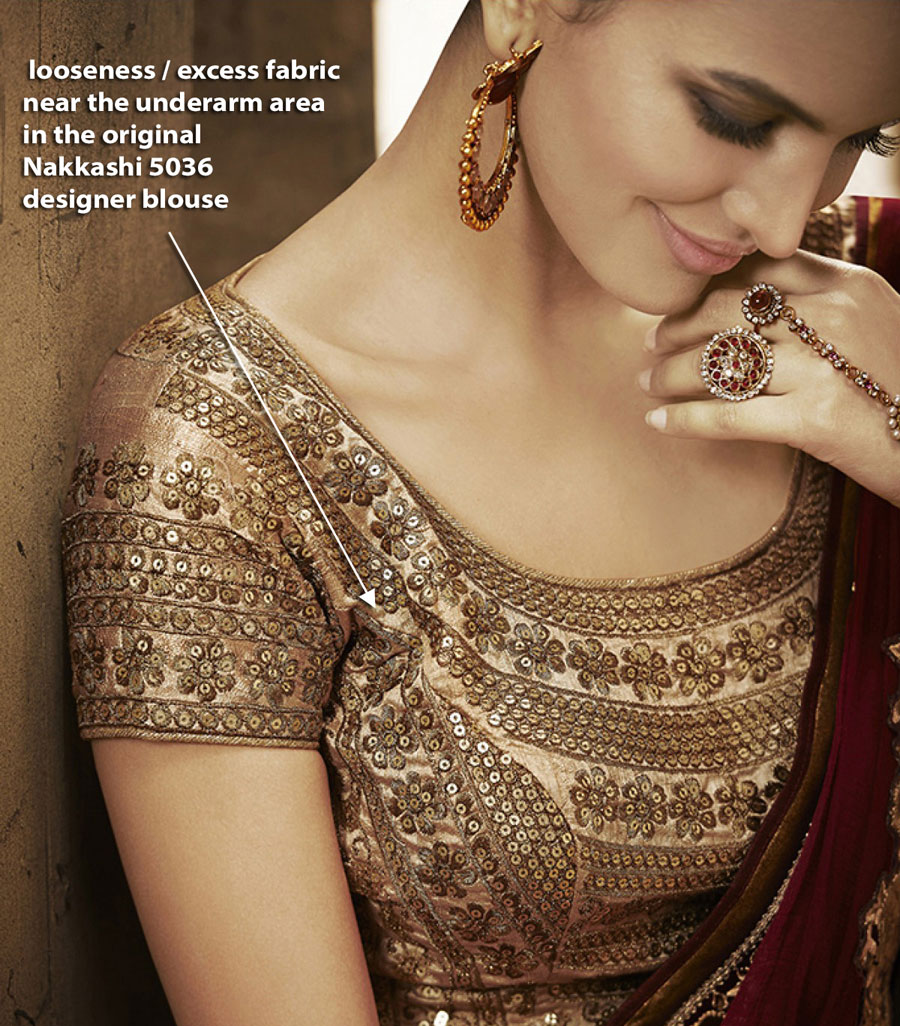

Looking at RTW & designer choli photos, some seem to show a bit of looseness / excess fabric near the underarm area.

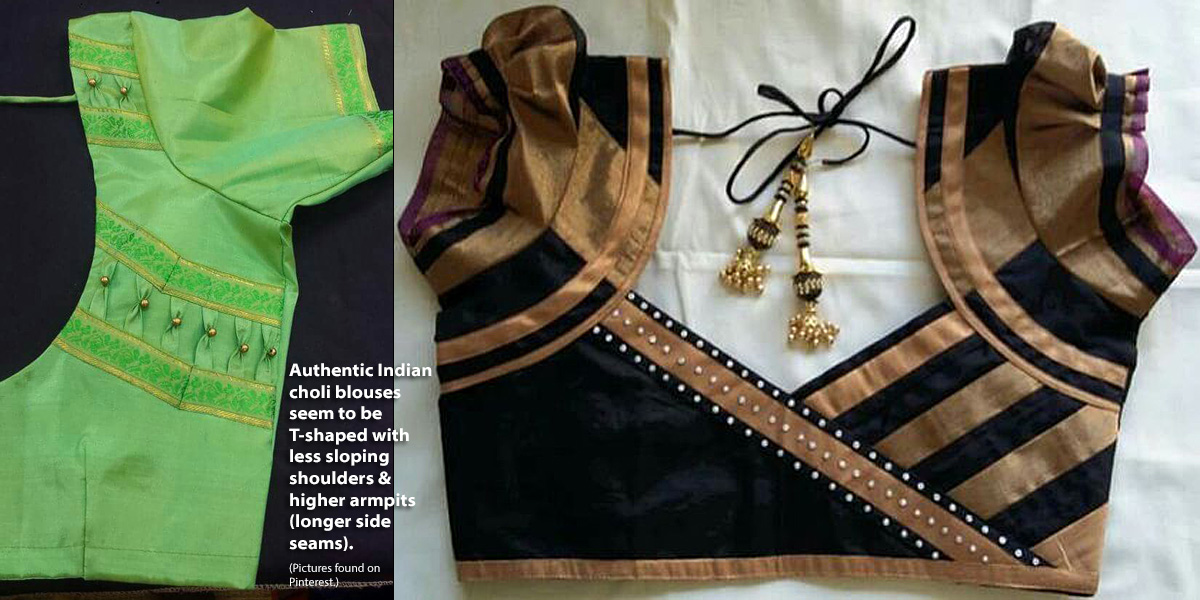

Most of the Indian drafting instruction I found online has shoulder slope of 1/2″ to 1″ at most. According to Fit For Real People standard western patterns (Big 4 presumably) assume a slope of 1-5/8″ – 2″. And the Indian illustrations seem to indicate a more T-shape finished garment shape than sloping sleeves.
I decided to try a couple of custom-made choli blouses from House of Blouse to see how an “authentic” fit may look like on me. Because it’s made to measure, you can actually pick & mix your design details. I pushed the envelope and went for very low back neckline with no dori back ties. One big caveat before we talk about fit: the measurements instruction was rather imprecise, so that may have affected the fit…

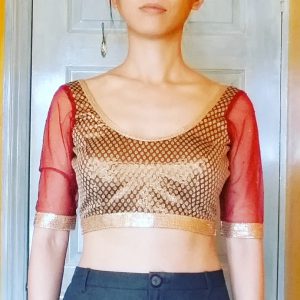

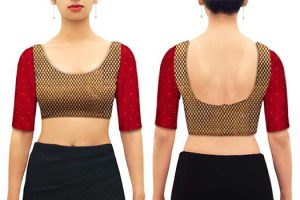

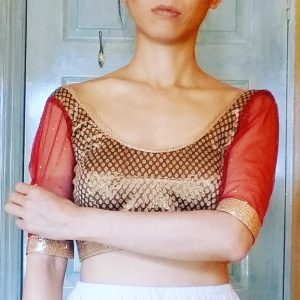

House of Blouse Choli 1

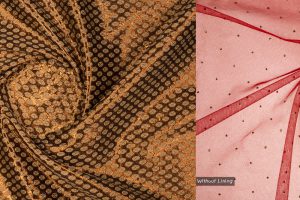

Regular length princess cut with Wide U Neck front & Classic U Neck back (no dori ties), back opening, bust pads, & elbow length sleeves.
Secure neckline: check!

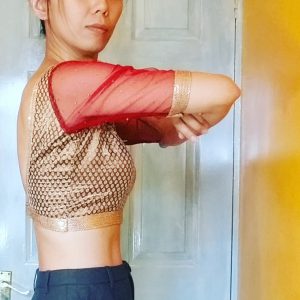

Forward mobility: check!
Upward mobility: check!
I was surprised that the bust pads actually created a more lifted look. I’m now tempted to try this in my own makes now.
Interestingly even with the princess seam, they added a centre front fisheye bust dart. It creates a nice shaping & probably holds the bust pads in place for better bust support.
Yeah! It stays on despite the wide open back, even when I tug at the sleeves.
Cross-front feels a bit too narrow while cross-back a bit too wide. Can feel the back armscyes cutting into the arm joints. This may be a problem with incorrect measurement or my posture / posterior arm joint “feature”.
Total mobility. No problem with arms forward or up.
You can definite see the fold of excess fabric underarm & armholes feel quite high up against the armpits. In the soft fabrics that I choose this probably won’t be a problem. But I wonder if this would feel a bit uncomfortable in more heavily embroidered fabric like my Muslin 2 above.

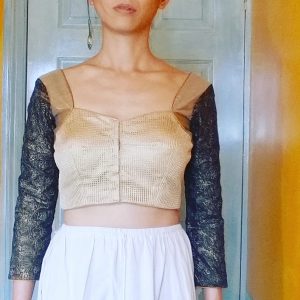

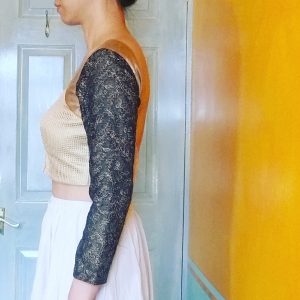

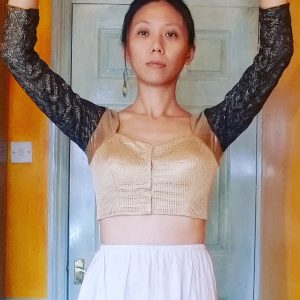

House of Blouse Choli 2

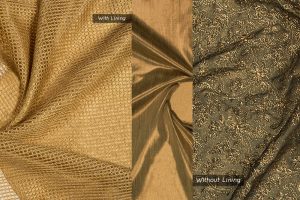

Regular length 3-dart cut with Armband Sweetheart Neck front & Armband Sweetheart Neck back (no dori ties), front opening, bust pads, & 3/4 length sleeves.
Secure neckline: fail!

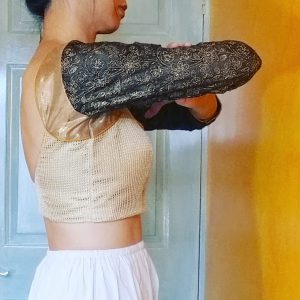

Forward mobility: check!
Upward mobility: check!
Bust & sleeve: same as above
Problem here. It easily slips off the shoulders
I would assume they drafted this with the same measurements.
Not sure if they derive additional styles from a block like western pattern maker or each design is drafted from scratch using a different formula.
Not sure if the problem here is the Sweetheart neckline or the Armband design.
This problem + the excess fabric foldat underarm for sleeve mobility rather defeat the armband design.
As there’s not much excess seam allowance in shoulder & armscye seams the only fx I can do is to add dori ties to the back neckline to keep the sleeves on.
My current hypothesis
To secure low open neckline + increase sleeve mobility:
Don’t have back neckline on shoulder blade peak.
Pattern’s shoulder slope need to be more square than actual slope of the body. A bit of fold under arm is the price to pay for sleeve mobility without excess width. Try pivoting on princess line to shorten neckline & lengthen side seam at the same time. Draft for arms up (shorter shoulder length, longer side length).
To test this hypothesis I plan on trying 2 more pattern drafting approaches:
Custom draft based on authentic choli pattern instruction found online
Custom draft base on my moulage with the above shoulder slope modification

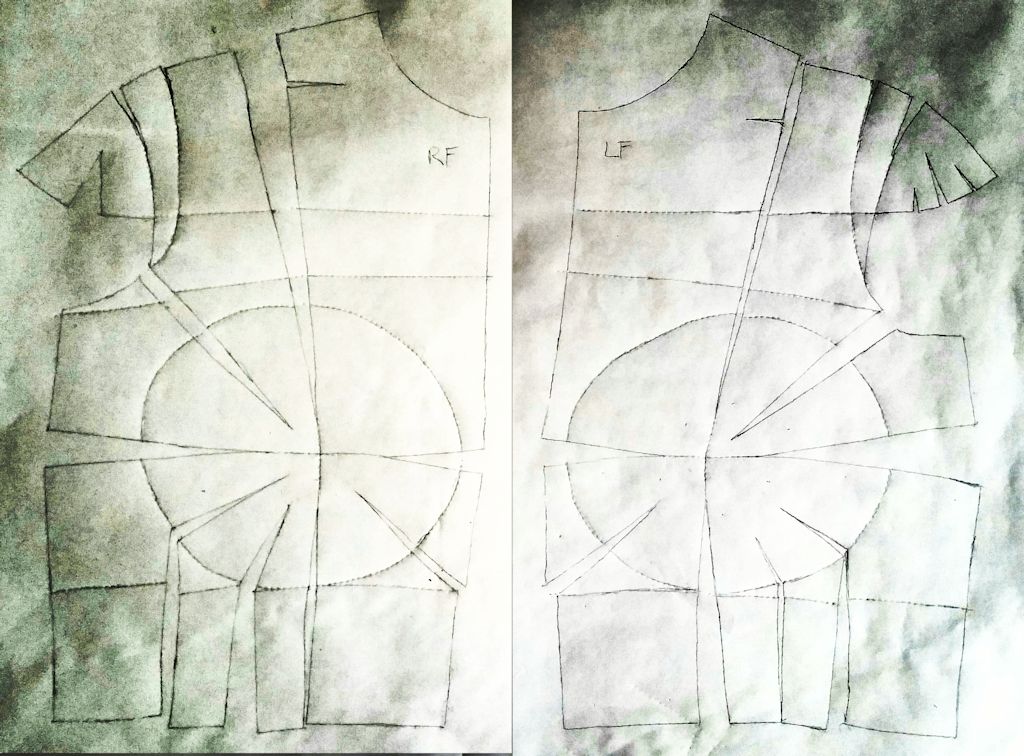

Flattened plastic wrap bodice front
Speaking of moulage… This time I will be basing my pattern on flattened plastic wrap. I’m not sure if my K. King moulage is 100% accurate as it’s drafted to a formula. Even though the muslin fitted like a second skin maybe it glosses over subtle concave areas like a slight hollow chest. This becomes more of a problem when you lower necklines or move the garment edges into these gentle valleys, thus exposing gaps. I’m hoping the plastic wrap would be more accurate. I have flattened & traced it, but haven’t rationalised the block yet. So you’ll have to wait a while for part 3!
