Tentative Fitted Jacket Blocks

Before I show you the matching reversible(ish) Burdastyle 11/2013 #117 moto jacket I suppose I should catch you up on my jacket block(s) experiment, since I used that as my fitting yard stick for this jacket.

moulage & knit sloperRemember my Kenneth King moulage from way back when? And the Top Block that I muslined backed in January? I never did show you the Jacket Block that’s derived from the Top Block did I? Well not properly anyway. You kind of saw it in my mess of a WIP block patterns. I never did muslin the Jacket & Coat Blocks.

Since this moto jacket is fitted & without internal structuring, I decided to make a few tweaks to my Jacket Block before using it to adjust the Burda pattern.

The revised Fitted Jacket Block is still mostly based on Kenneth King’s Moulage CD book. But I cross-checked against my two other pattern-making books that have instruction for converting basic bodice block to jacket block (Connie Crawford’s Patternmaking Made Easy. and Dennic Chunman Lo’s Patternmaking: Portfolio Skills). They all do it slightly differently. KK’s version seem to have the most ease. Dennic mentions the tighter fit of modern designs, so in the end I reduced the amount of ease to:

Shoulder out 1/2″ up 3/8″
Cross-front out 0″
Cross-back out 3/4″
Underarm out 7/8″ down 7/8″
Bust out 7/8″ (total ease: 3-1/2″)
Waist out 5/8″ (total ease: 2-1/2″)
High Hip out 5/8″
Hip out 7/8″ (total ease: 3-1/2″)
These are all relative to the skin-tight 0″ ease moulage.

The darts were shifted only 3/8″ width-wise. I didn’t bother lowering the waist for this Fitted Jacket Block, especially as this particular moto jacket will have no interfacing nor lining, so no extra layers accommodate.

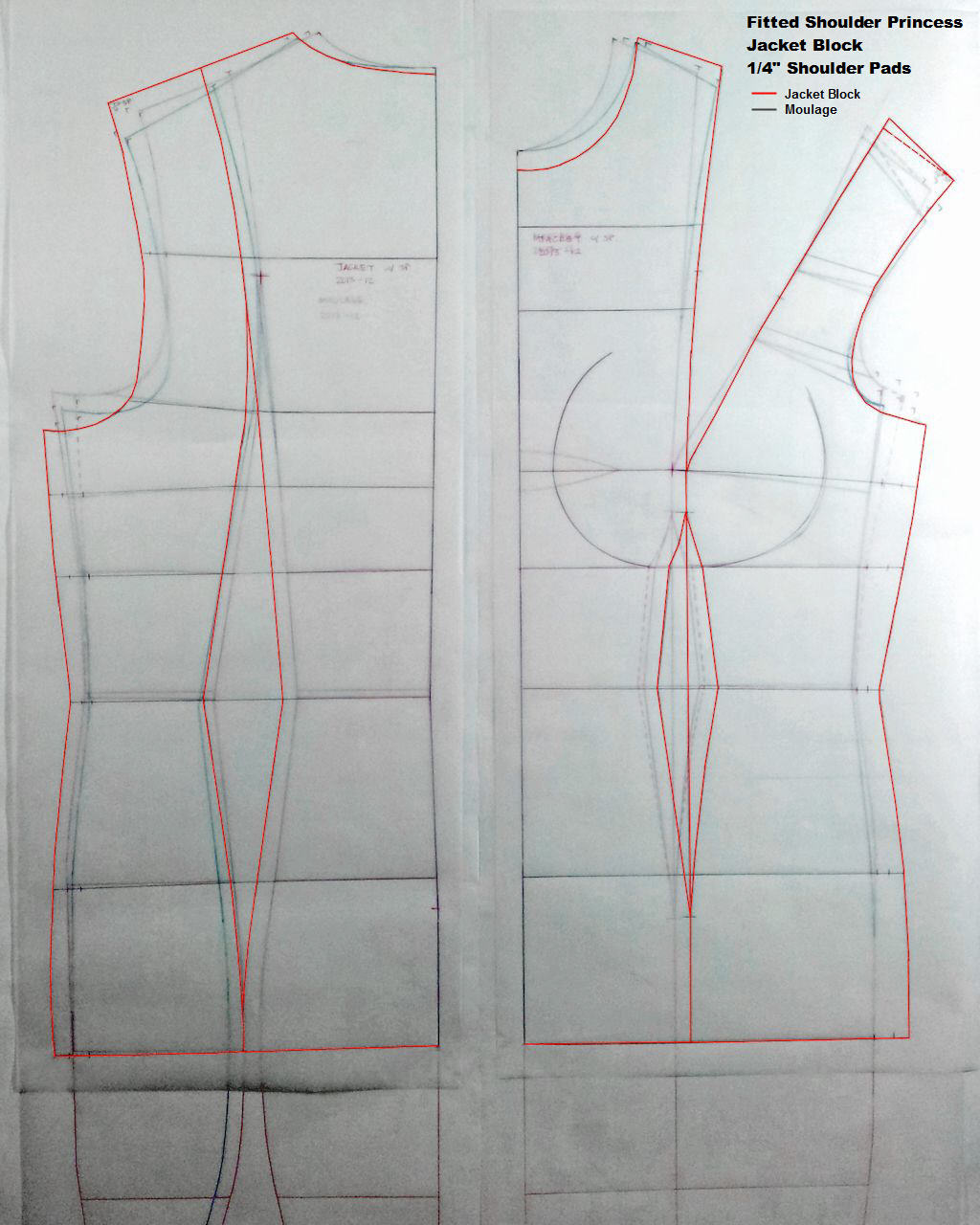

Next, I had to pivot the horizontal bust dart into a shoulder dart to create a Fitted Shoulder Princess Jacket Block.

moulage-v-jsp

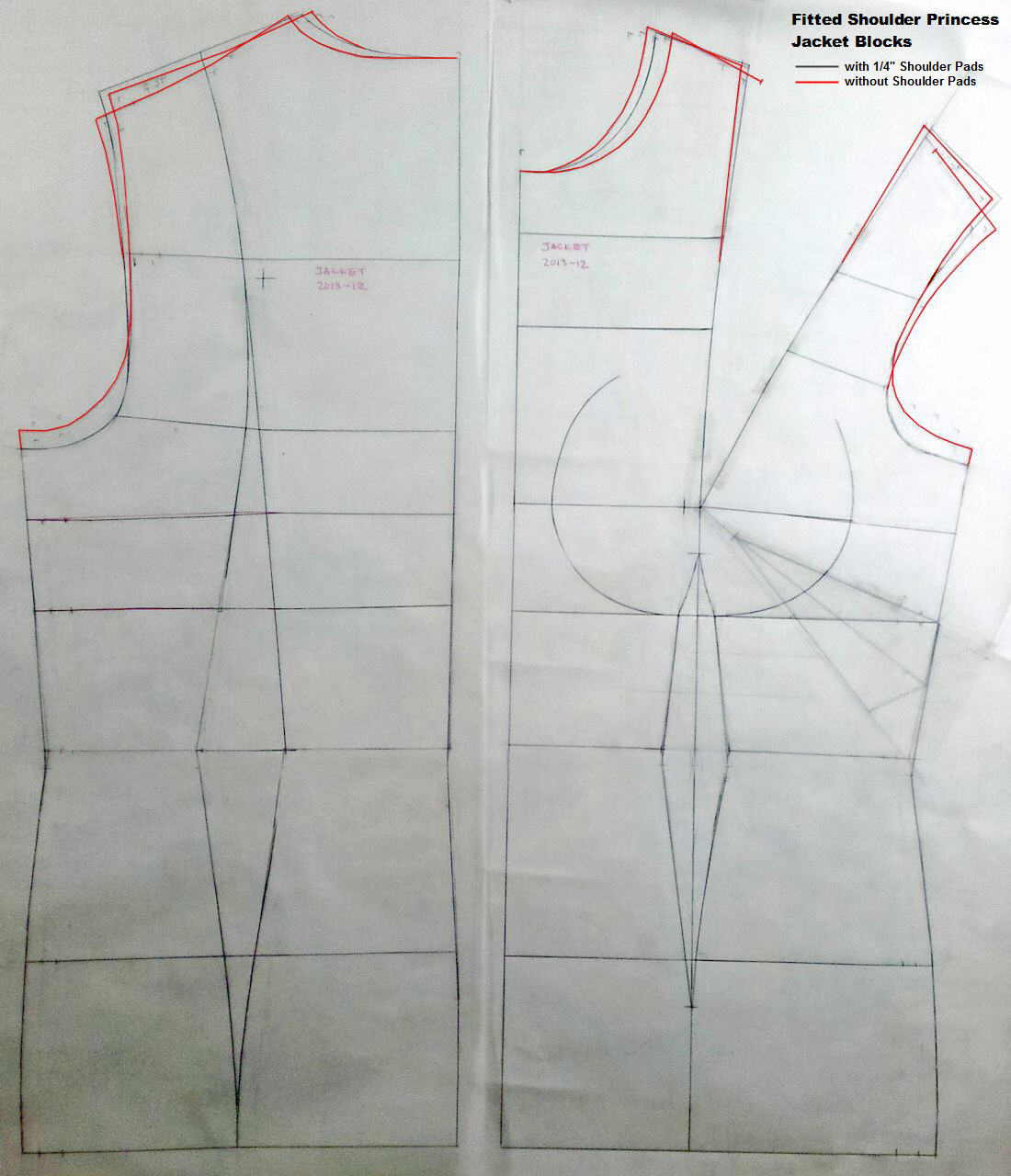

And as the Burda jacket won’t have shoulder pads, I had decrease the shoulder ease / extensions and account for my uneven shoulder.

j-princess

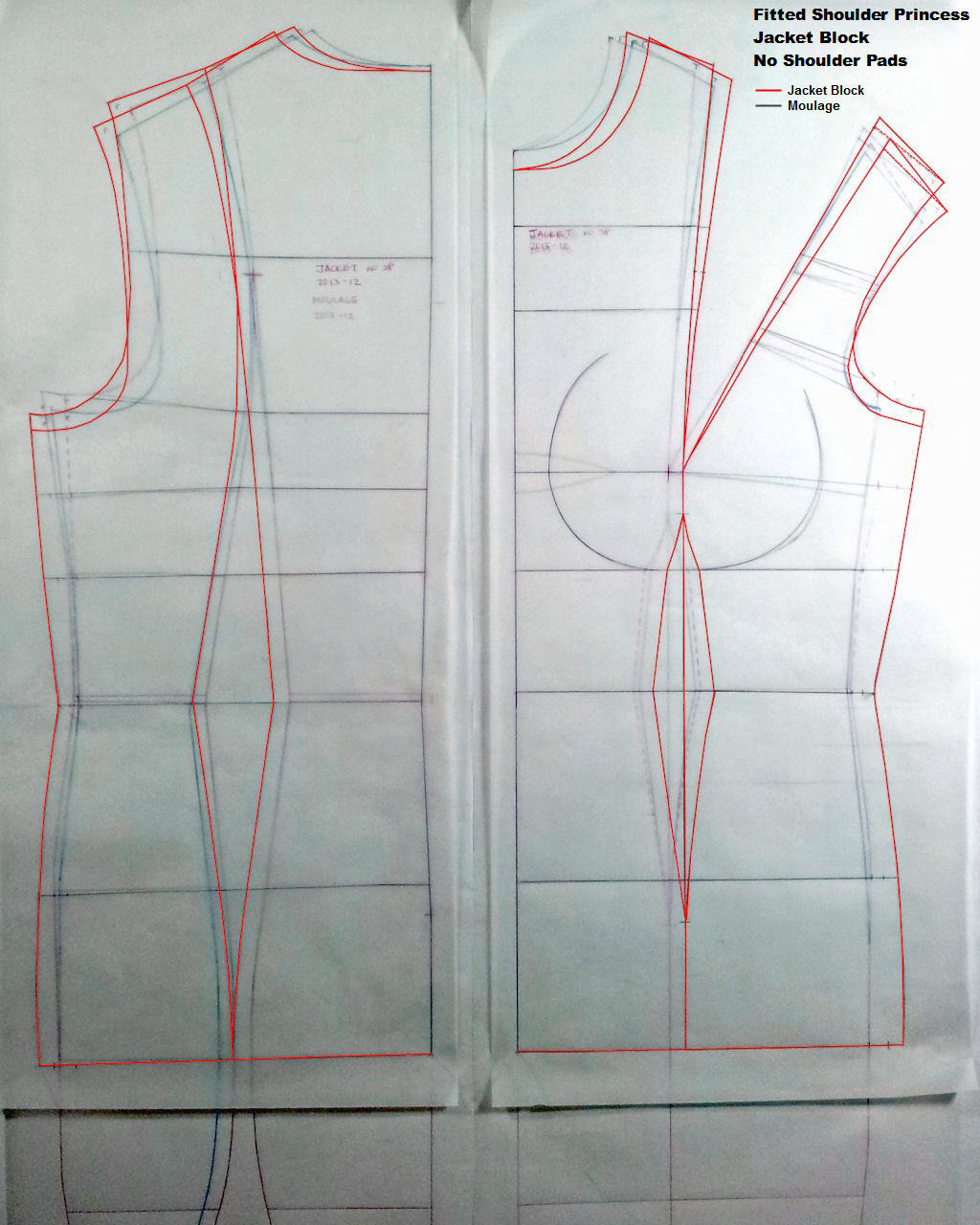

So my final block for checking the Burda jacket fit looks like this compared to the Moulage:

moulage-v-jnsp
